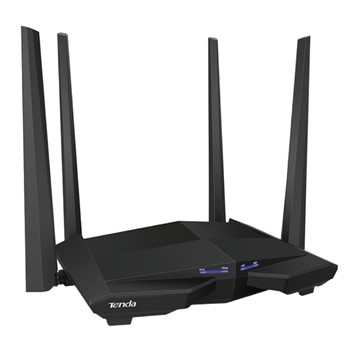

Router wireless AC10 1200Mbps 3porte switch, dual band
Caratteristiche
AC10U è il nuovo router di classe Gigabit che offre la connettività WiFi 802.11ac Wave 2.0. La sua potente CPU funzionante a 1GHz ed i 128MB di RAM DDR3, garantiscono le migliori prestazioni e stabilità di segnale Dual Band. La banda a 5GHz raggiunge la velocità di 867Mbps, mentre la banda a 2.4GHz raggiunge i 300Mbps, offrendo un'incredibile larghezza di banda combinata a 1167Mbps.
Interfaccia
3*GE LAN Ports
1*GE WAN Port
1*GE WAN Port
Pulsante
1*WiFi On/Off button
1*Reset/WPS button
1*Reset/WPS button
Fonte d'alimentazione
Power Input: 100-240V—50/60Hz
Power Output: DC 12V==2A
Power Output: DC 12V==2A
Dimensioni
Package Box: 390*198*70mm（L*W*H)
Device: 220*141.5*49mm（L*W*H)
Device: 220*141.5*49mm（L*W*H)
Peso
Gross Weight: 810g
Net Weight: 350g
Net Weight: 350g
Antenna
4*5dBi External Dual Band Antennas
LED
1*WAN、1*LAN、1*Wi-Fi/WPS、1*SYS
Standard e Protocollo
Wireless Standards:IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
Wired Standards:IEEE 802.3, IEEE 802.3u
IEEE 802.11n/g/b 2.4GHz
Wired Standards:IEEE 802.3, IEEE 802.3u
Frequenza
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
2.4GHz: Up to 300Mbps
Potenza di trasmissione
CE:
<20dBm （2.4G）
<23dBm （5G）
FCC:<30dBm
<20dBm （2.4G）
<23dBm （5G）
FCC:<30dBm
Sicurezza senza fili
WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption
Wireless Security: Enable/Disable
WPS Fast Encryption
Tipo di connessione WAN
Dynamic IP/Static IP/PPPoE
Connection Type Auto Detection
Broadband Account and Password Migration
Connection Type Auto Detection
Broadband Account and Password Migration
Modalità di funzionamento
Router/AP/Universal Repeater/WISP
Gestione
Local Management
Remote Management
Tenda APP
Remote Management
Tenda APP
Funzioni basiche
MU-MIMO
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment
Server virtuale
UPnP
DMZ
Port Forwarding
DMZ
Port Forwarding
DHCP
DHCP Server and Client
DHCP Client List
DHCP Address Reservation
DHCP Client List
DHCP Address Reservation
DDNS
DynDns, NO-IP, Oray.com, 3322.org, 88ip
VPN
PPTP Client
PPTP Server
L2TP Client
PPTP Server
L2TP Client
Firewall
Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
Caratteristiche
Smart Wi-Fi Schedule
Smart Power Saving
Smart LED On/Off
Smart Power Saving
Smart LED On/Off
Altro
Bandwidth Control
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online
Certificazioni
CE, FCC, RoHS, BSMI, NCC, EAC, IC
Impostazioni di default
Default Access Address: tendawifi.com or http://192.168.0.1
Contenuto della confezione
AC1200 Smart Dual-Band Gigabit WiFi Router
Power Supply
Ethernet Cable
Quick Installation Guide
Power Supply
Ethernet Cable
Quick Installation Guide
Requisiti di sistema
Microsoft Windows XP, Vista™ or Windows 7, Windows 8/8.1/11
MAC OS, UNIX or Linux
MAC OS, UNIX or Linux
Ambiente
Operating Environment:0℃~40℃
Storage Environment:-40℃~70℃
Operating Environment:10%~90% RH non-condensing
Storage Environment:5%~90% RH non-condensing
Storage Environment:-40℃~70℃
Operating Environment:10%~90% RH non-condensing
Storage Environment:5%~90% RH non-condensing
