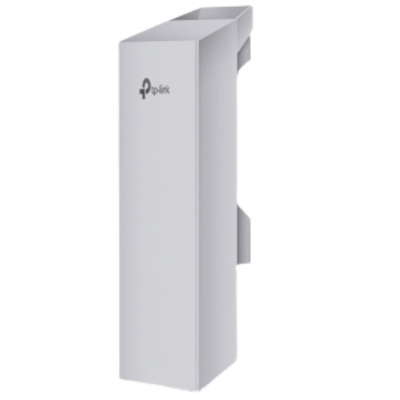

Access Point per esterno 300Mbps
Caratteristiche
- Antenna integrata MIMO 2x2 a doppia polarizzazione da 13dBi
- Potenza regolabile da 0 a 17dBm
- Ottimizzazione per link fino a 3km
- Tecnologia TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) per ottimizzare capacità e latenza, ideale per applicazioni PTMP
- Gestione centralizzata Pharos Control
- Modalità operative AP / Client / AP Router / AP Client Router (WISP)
- Injector PoE Passivo (incluso nella confezione) con capacità fino a 60m e funzionalità di RESET remoto
| Processore | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
|---|---|
| Memoria | 64MB DDR2 RAM, 8MB Flash |
| Interfaccia | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button |
| Alimentazione | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Consumo energetico | 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensioni ( L x P x A ) | 224 x 79 x 60 mm |
| Tipo di antenna | Built-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet |
| Sicurezza | 15KV ESD Protection 6KV Lightning Protection |
| Enclosure | Outdoor ASA stabilized plastic material IP65 waterproof Certification |
| CARATTERISTICHE WIRELESS | |
|---|---|
| Standard wireless | IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Protocollo proprietario | TDMA Mode (with Pharos MAXtream enabled) |
| Velocità wireless | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
| Frequenza | 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Potenza di trasmissione | <30dB EIRP (normativa CE) |
| CARATTERISTICHE SOFTWARE | |
|---|---|
| Configurazioni wireless | Pharos MAXtream TDMA Technology 802.11a/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Gestione | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| Tool di sistema | Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
| Ottimizzazioni di sistema | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
| CARATTERISTICHE ADATTATORE POE | |
|---|---|
| Dimensioni ( L x P x A ) | 110*57*33.5mm |
| Interfacce | 1 AC Jack with Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100/1000Mbps Shielded Ethernet Port (Data) |
| Tasto | Remote Reset Button |
| Indicatori di carica LED | 0~0.8A: Green 0.8A~1.0A: Red |
| Input | 100-240VAC, 50/60Hz |
| Input Voltage | 100VA~240VAC @ 50Hz~60Hz |
| Input Current | 0.8A Max @ 100VAC |
| Output | 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Output Voltage | 24VDC(+4,5pins; -7,8pins) |
| Efficienza | >80% |
| Certificazioni | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| ALTRO | |
|---|---|
| Certificazione | CE, FCC, RoHS, IPX5 |
| Contenuto della confezione | Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Requisiti di sistema | Nessuno. |
| Ambiente | Operating Temperature: -30°C~70°C (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
