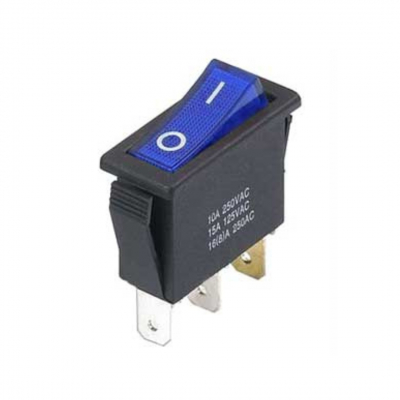

SHOP :: Interruttore bilancere 16A 250V

1 Rating 16A 250V AC 16A 125V AC
2 Operating temperature range - 30℃~ +85℃
3 Operating force 4 N Max
4 Marking
The following is marked on the switch.
Manufacturer’mark HOSENSE
Catalogue No. HS3
Rating 16A 250V AC 16A 125V AC
Approval mark
5 Applicable standard
UL / CUL E232139
TUV R 50038046
VDE
ISO9001-2000 CN03/0111
6 Contact resistance 20m Ω Max
7 Insulation resistance 500 MΩ Min.at 500 VDC
8 Dielectric strength Pin-Pin 1500VAC for 1 Minute
9 Electric life 10,000cycles
